Tech-Winder™ Pendant Safety Cable Reels
Cable Management Solution
Inadequate cable organization creates unsafe working conditions and poses major hazards in the workspace. It can also lead to significant financial losses, potentially costing thousands of dollars in damages and replacement cables.
Tech Rim Standards offers the Tech-Winder™, a robust, reliable, and easy-to-use solution designed to keep pendant cords protected and organized.
By integrating Tech-Winder™ cable winders and reels into your facility, you can enhance safety, reduce costs, and improve overall efficiency.

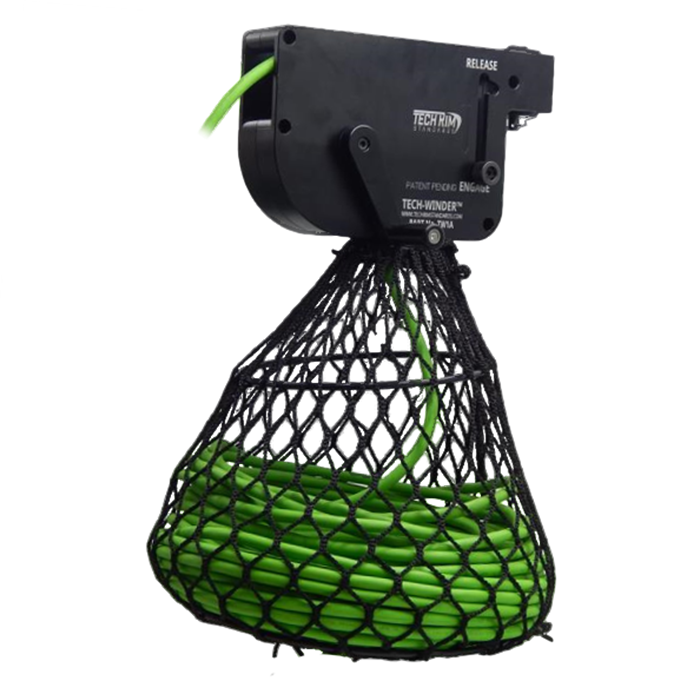

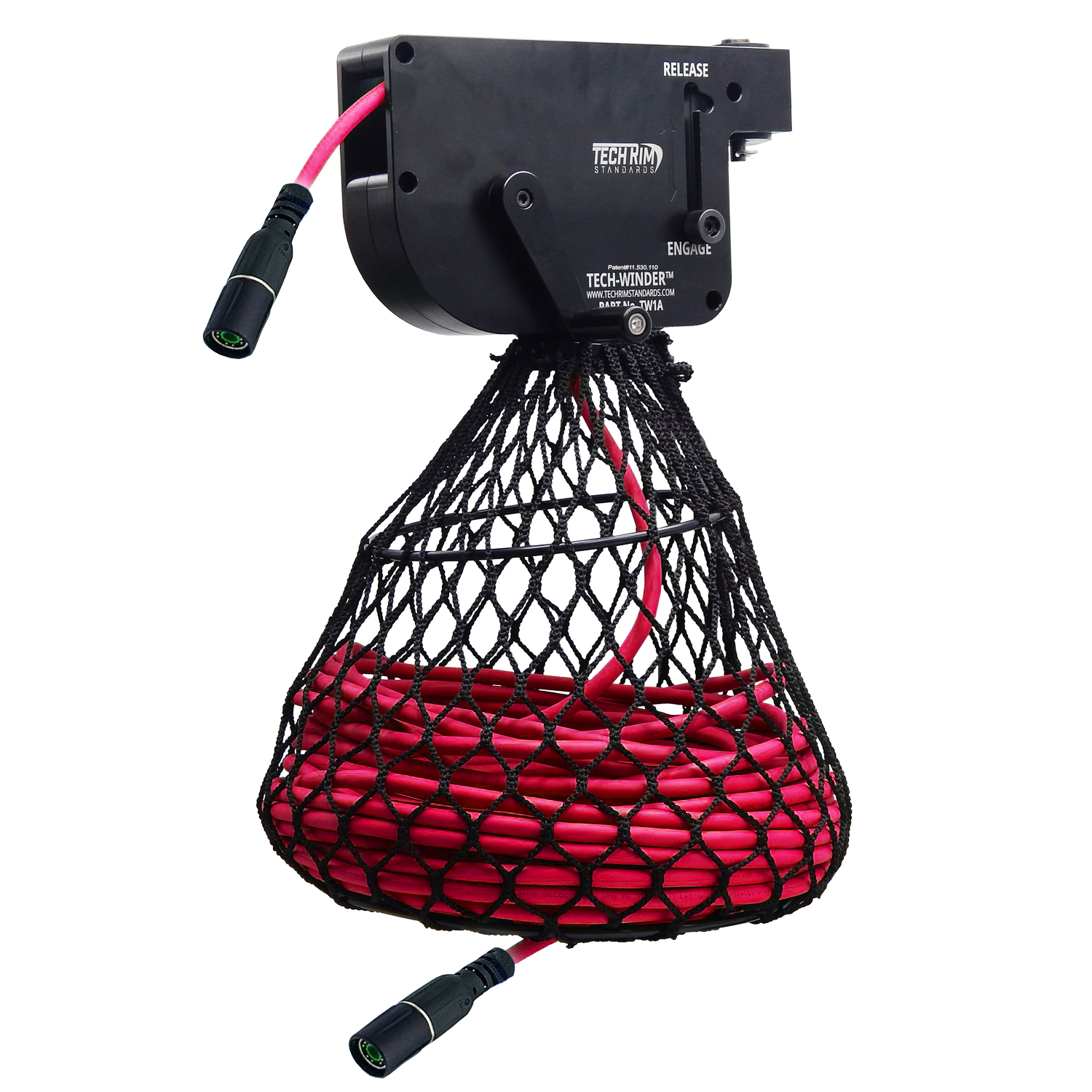

Tech-Winder™
TW1A
Cable winder for teach pendants with cords shorter than 50 meters.

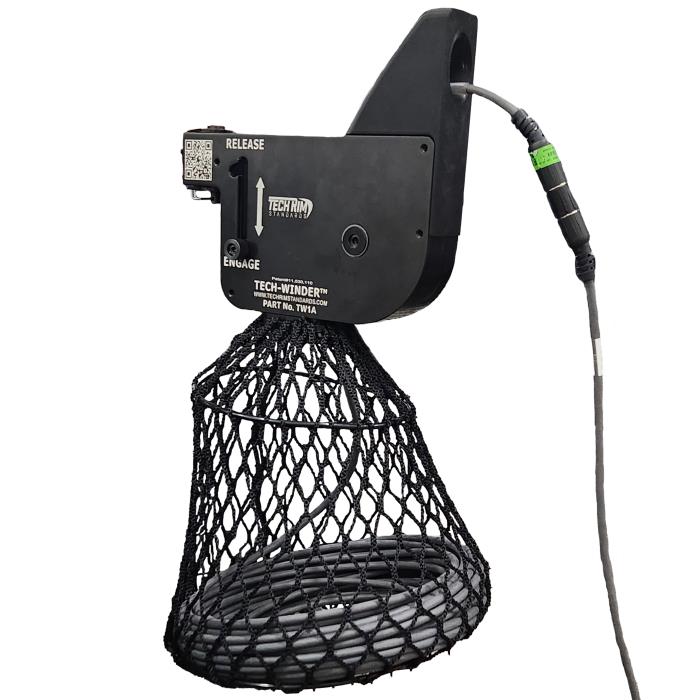

Tech-Winder™
TW1A-CG1
Cable winder for teach pendants with extension cables.
Tech-Winder™
TW1A-XL
Cable winder for teach pendants with cords longer than 50 meters.
Features
- Tangle-Free for single hand operation
- Organized storage of pendant cable
- Easy locking mechanism
- Mounting bracket for 180° pivoting
- Adaptable to NAAMS or modular fencing
- Configurable to fit any cable or adapter
- Made of strong robust aluminum coupled with fire retardant net
| Ordering Information | ||
|---|---|---|
| Product Name | Tech-Winder™ Pendant Safety Cable Reel | |
| Model Number | TW1A | |
| Technical Details | ||
|---|---|---|
| Item Weight | 3.1 kg (6.8 lbs) | |
| Overall Dimensions | 315 x 140 x 470 mm | |
| Cable Storage | Stores up to 50 meters / 9 kg (150 ft / 20 lbs) (Based on typical teach pendant cable) | |
| Cable Diameter Range | 4.5 - 10 mm (Cable diameter > 10 mm may require two hand operation) | |

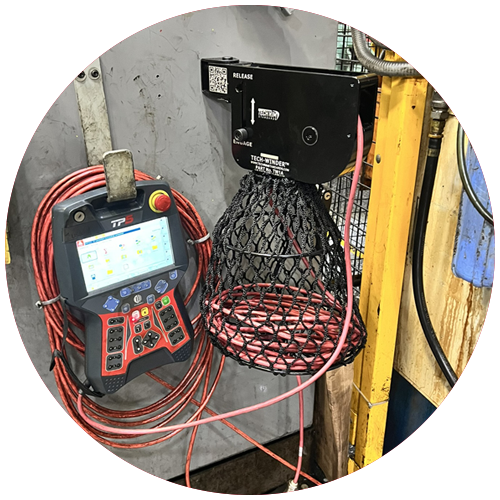

Tech-Winder™ at Challenge Manufacturing Plant

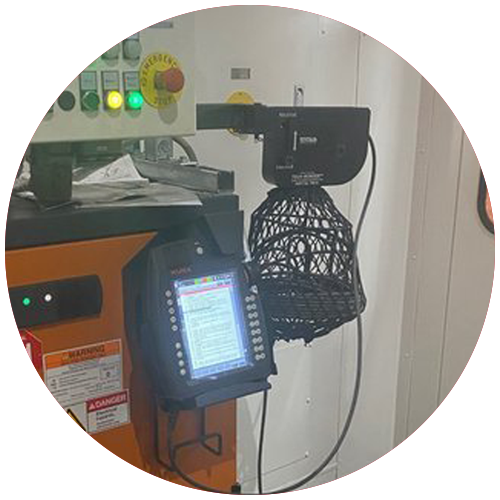

Tech-Winder™ at Ford Plant

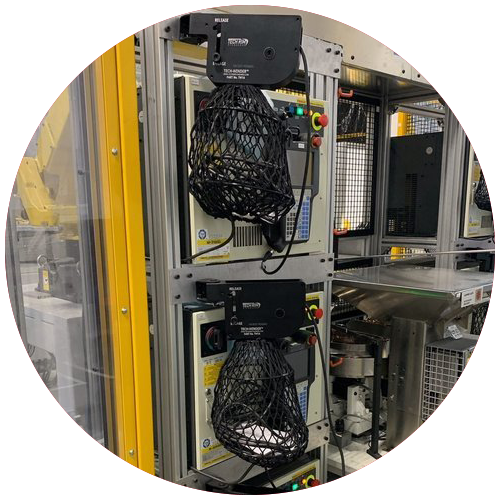

Tech-Winder™ at Linamar Plant

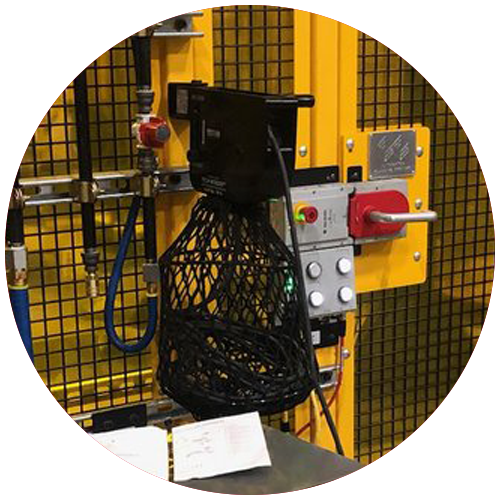

Tech-Winder™ at Paslin Plant
