BIW Solutions
Heavy-Duty Automation Components
Our line of high-end, heavy-duty automation products covers welding, robotic, and assembly manufacturing — built from over 40 years of in-plant program experience across automotive, packaging, glass, aerospace, and medical production. Built to last and readily available.

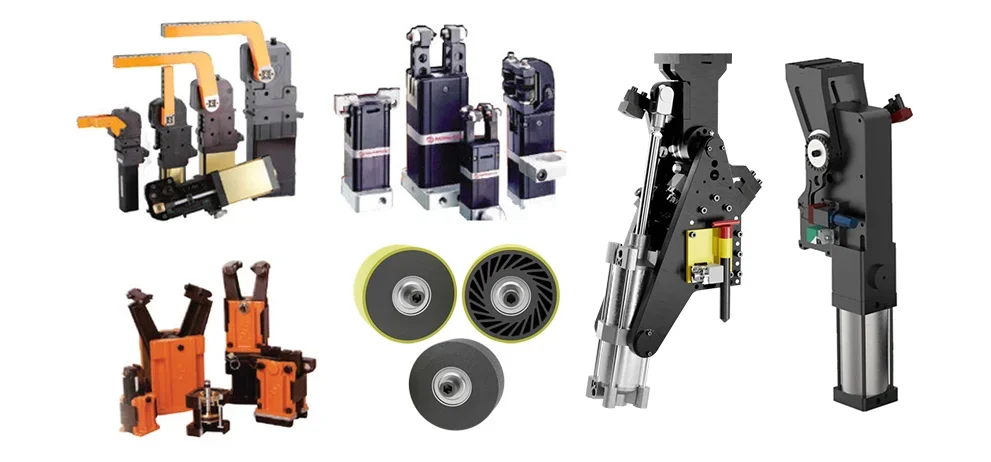

Our Comprehensive Line
Built to last and readily available. Explore each family below, or contact us for more information.

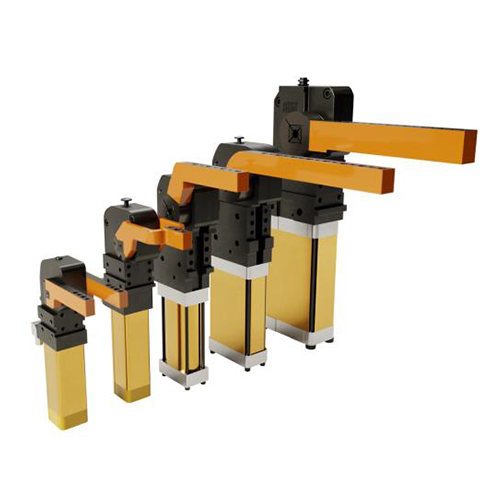

EC Power Clamps
Power clamps are robust, automated clamping devices used in tooling systems to securely hold workpieces in place during machining, welding, or assembly operations. They deliver consistent clamping force, improve cycle times, and enhance safety by reducing manual intervention in high-precision manufacturing environments.
The EC Series features a toggle lock incorporating a “before center” mechanism, generating higher clamping forces. A built-in “stroke-to-go” feature delivers the highest industry standard for repeatability.

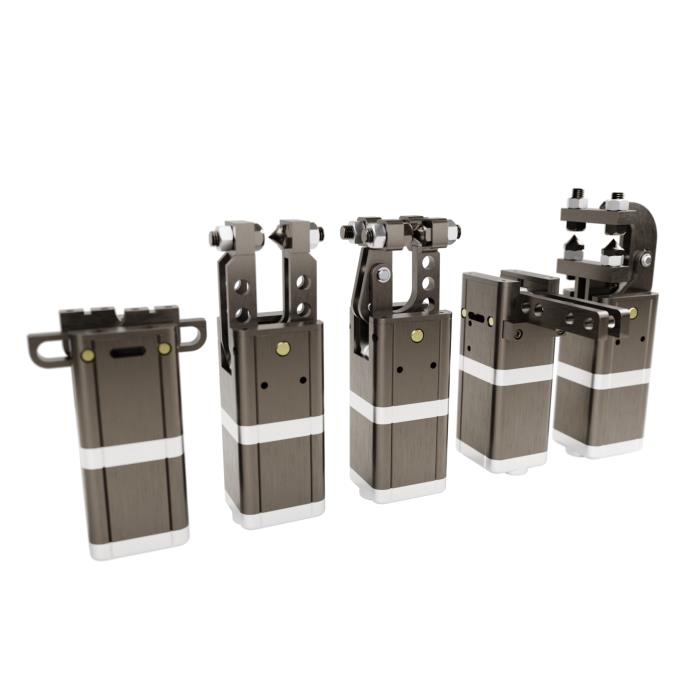

GL / GH Grippers
Grippers securely grasp, hold, and manipulate parts during automated or manual operations, enhancing precision, efficiency, and safety in manufacturing, assembly, and robotic applications.
The GL Series features a modular 360° swivel-head adjustment and works with flange and orbital rod mounts. The GH Series comes in mini, standard, and heavy-duty sizes, with 50 different gripper head combinations and 2/4-point gripping.
GL Series Dimensions, By Model
| Model | Bore Size | Dimensions | Weight |
|---|---|---|---|
| GL400 | 1.50 in (Ø 38 mm) | 1.69 × 1.88 in (43 × 48 mm) | 2.20 lb (0.998 kg) |
| GL500 | 2.00 in (Ø 51 mm) | 2.25 × 2.50 in (57 × 63 mm) | 4.40 lb (1.996 kg) |
| GL700 | 2.75 in (Ø 70 mm) | 3.00 × 3.25 in (76 × 82 mm) | 9.90 lb (4.491 kg) |

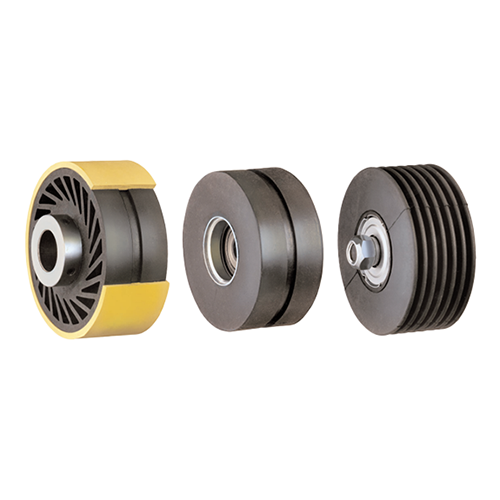

Automation Rollers
Automation rollers are critical components in material handling systems, enabling smooth, efficient, and controlled movement of goods across production lines — reducing manual handling and supporting high-throughput operations.
- RR42 — Rollflex Cushion Roller (Tuff Skin, Tender Heart)
- CR42 — Cushion Finned Roller (The Soft Touch)
- SR42 — Rollflex Cushion Roller (The Heavy Mover)
Need a part fast?
Send us your print or part number. Most quotes come back within one business day.
